Do you need an extra 4 hours of production a day?
Pitchline's automatic barfeeder range keeps your CNC lathe cutting when nobody is standing at it. Developed and built at our own Pinetown factory, offered commercially for over 20 years, and running today on twelve of our own production lathes.

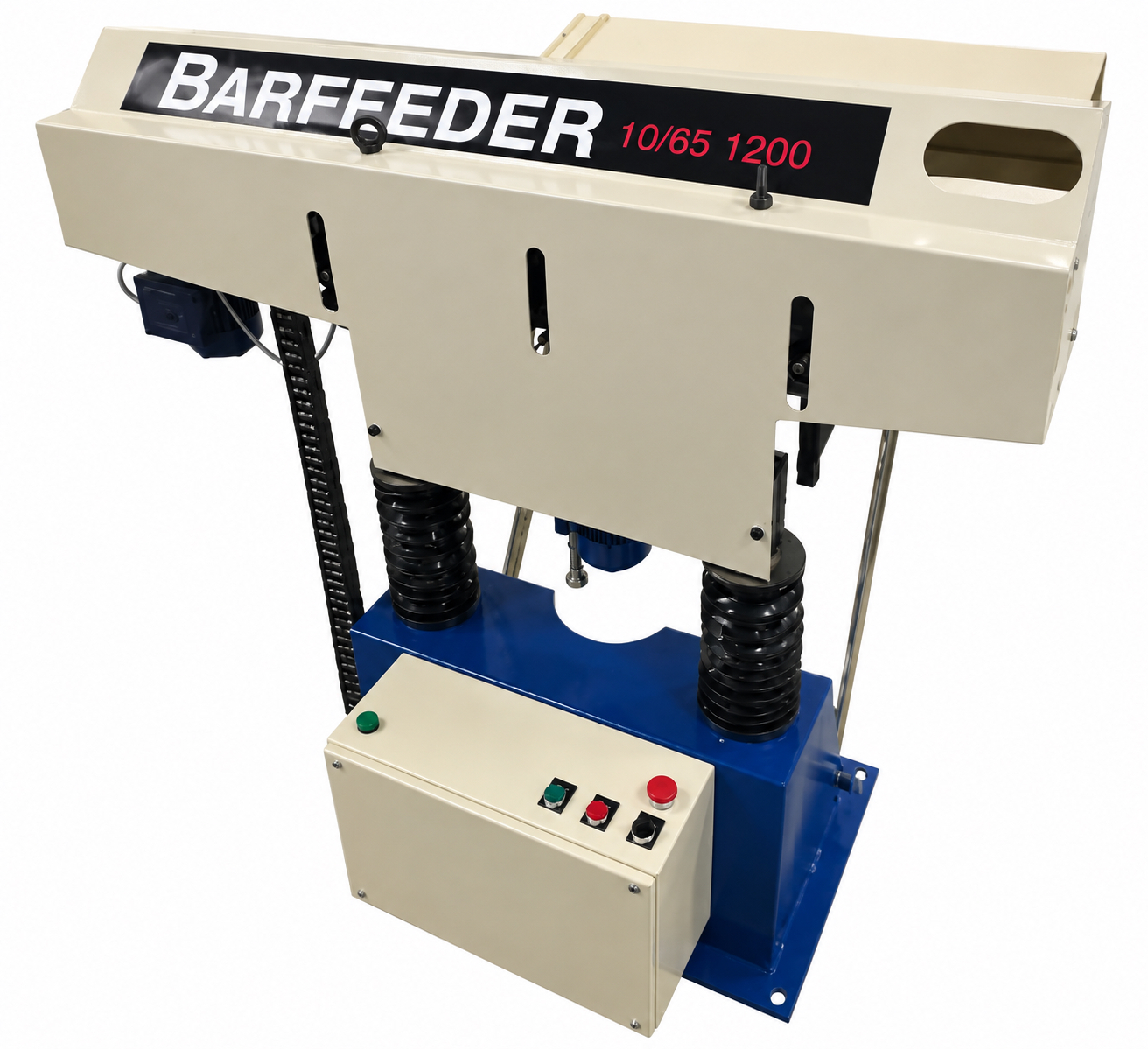

Model 10/65 1200 short bar automatic loader
Model 10/65 1200
Short bar automatic loader for CNC lathes: all-electric, PLC controlled, 10-65mm bar and only a third of the floor space of a conventional barfeed.
View full specificationsThe Model 10/65 1200 is a short bar automatic loader built at our own factory in Pinetown. It loads 10mm to 65mm bar stock up to 1200mm long into your CNC lathe without an operator standing at the machine, so the lathe keeps cutting through breaks, over lunch and after the shift ends. Actuation is fully electric with no air supply needed, control is by PLC, and the machine only requires a 1M code signal from the lathe. The magazine loader accepts random lengths, bar straightness is not critical, and the whole unit takes about a third of the floor space of a conventional barfeed.
Specifications

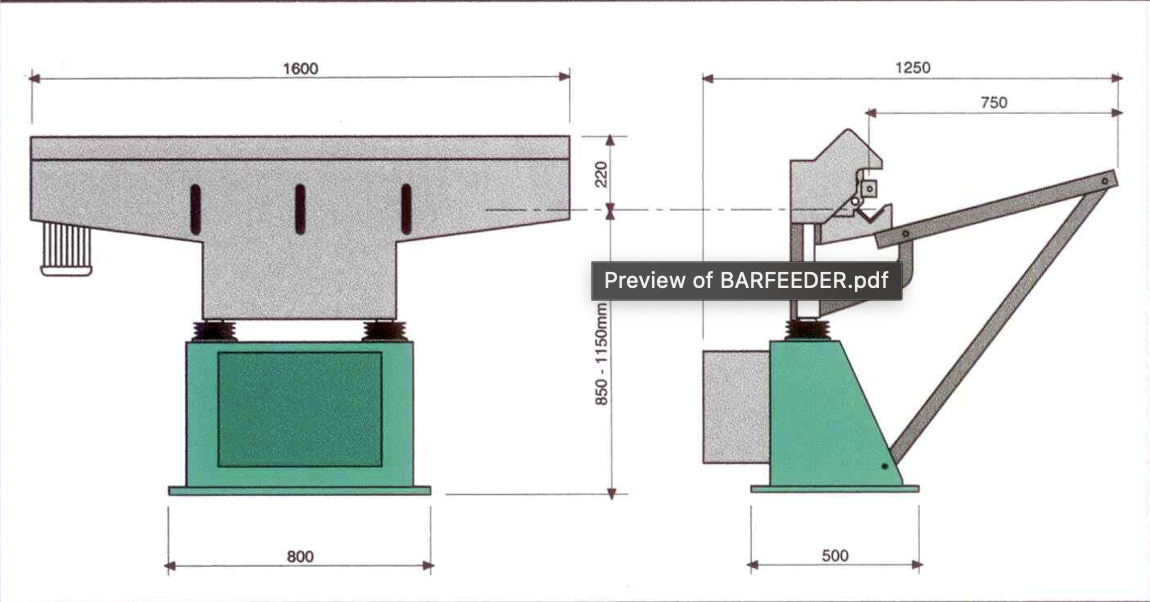

- Floor space
- 1600mm x 1250mm
- Barstock diameter
- 10 - 65mm
- Barstock length
- 1200mm
- Centre height range
- 850mm - 1150mm
- Actuation
- Electric motor
- Electrics
- 380 VAC
More output, less cost, less floor space
- All electric actuation — no air supply required
- PLC control
- Only a 1M code signal required from the lathe
- No RPM limitation
- Magazine loader accommodates random lengths
- Bar straightness not critical
- Only 33% of the space required by a conventional barfeed
- Maintenance free
Proven on our own production line

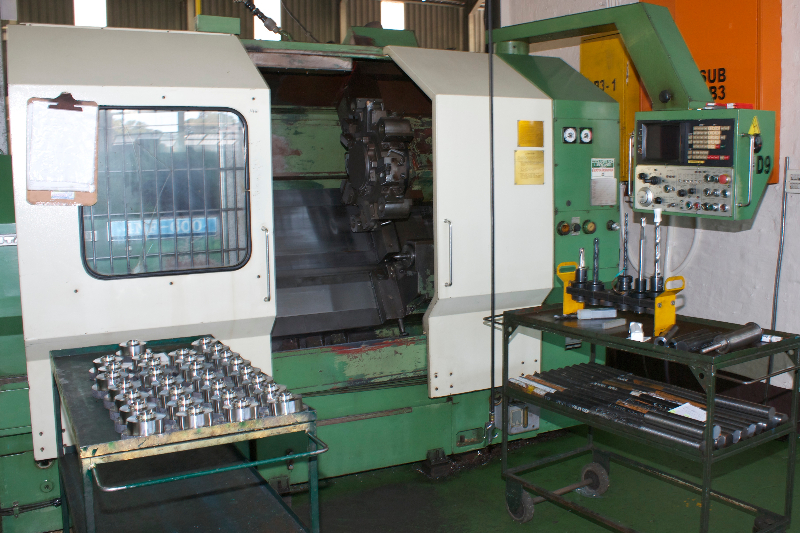

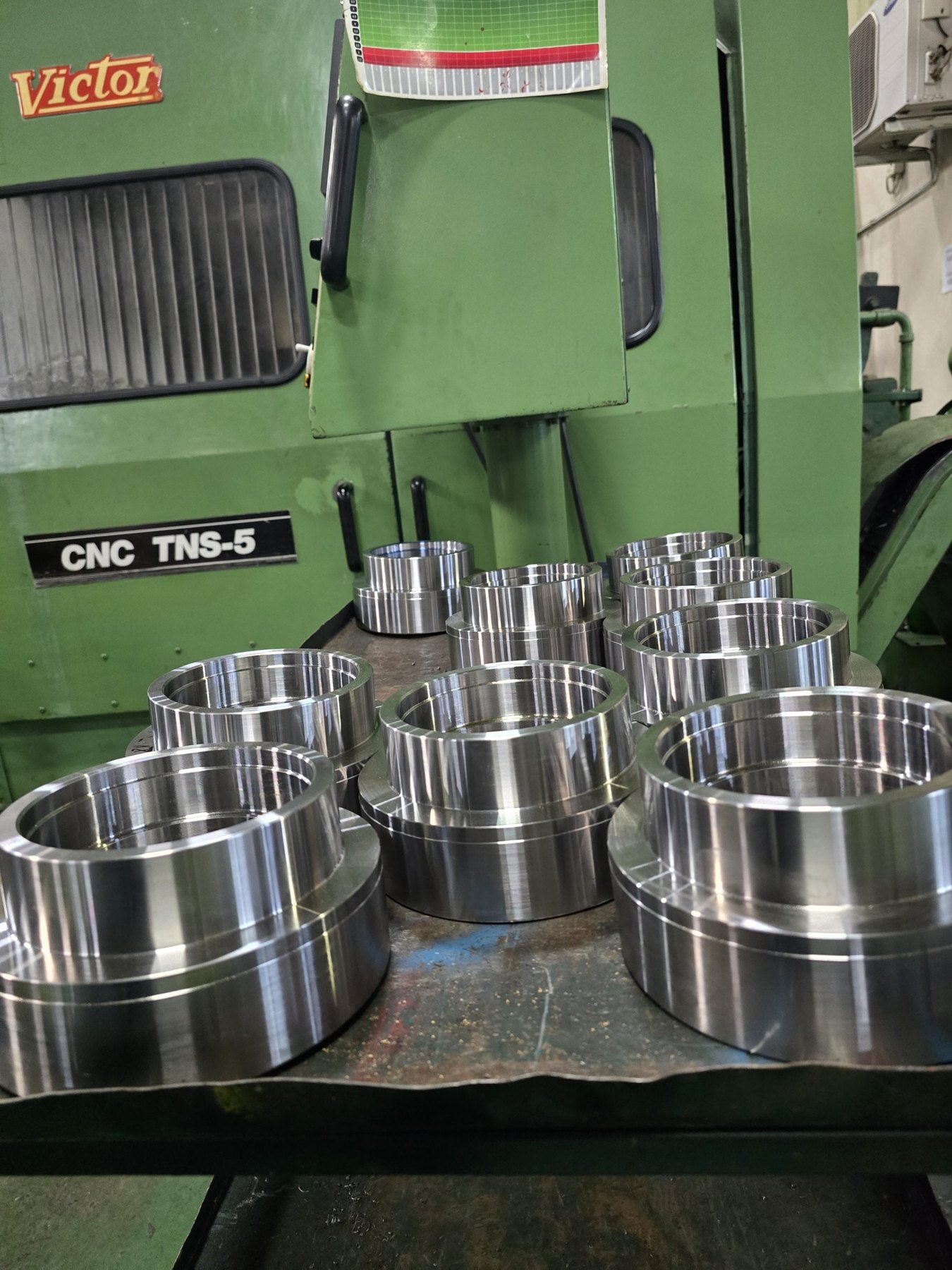

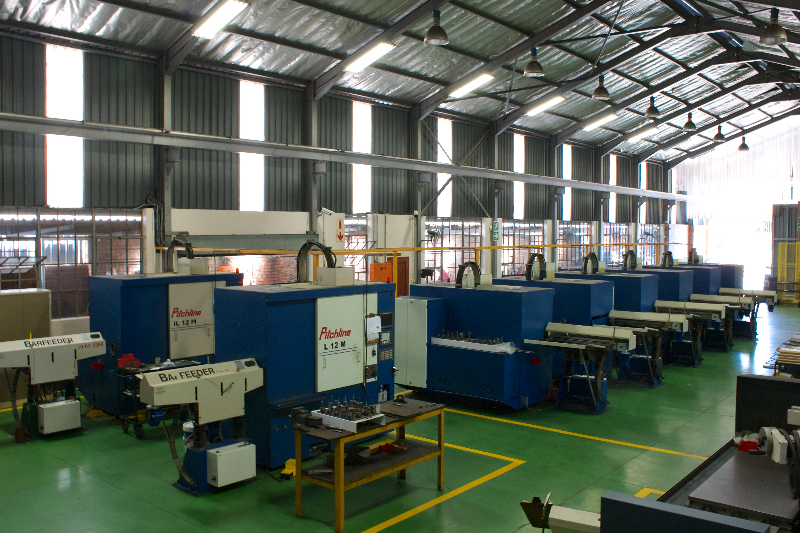

Twelve of our own CNC lathes run with these barfeeders, giving high speed unattended production and consistent accuracy from the first part to the last. Everything is designed, built and supported at 32 Henwood Road, Pinetown, KwaZulu-Natal.
- Designed, built and supported at our own Pinetown factory
- Offered commercially for over 20 years
- Proven daily on twelve of our own CNC lathes
- Unattended running for longer production batches
- Consistent accuracy from the first part to the last
Barfeeder questions
How do I get more production out of my CNC lathe without buying another machine?
Fit an automatic bar loader. Once the magazine is loaded the lathe keeps turning parts on its own, so it runs through breaks and after the shift ends instead of standing still waiting for an operator to load the next bar.
Is an automatic barfeeder a low cost way to increase output?
It is normally far cheaper than a second lathe, because you are buying extra running hours on a machine you already own rather than another machine, tooling and floor space. Send us your lathe details for a quote.
What does an automatic barfeeder do?
It loads bar stock into a CNC lathe automatically, so the machine keeps producing parts without an operator loading each bar. That means longer unattended running and more consistent output.
Are these barfeeders proven?
Twelve of our own production lathes run with them every day, and we have been offering the range commercially for over 20 years.
Will a barfeeder suit my lathe?
Tell us the lathe make and model, the bar diameter range and the bar length you use, and we will advise which configuration fits. Our Model 10/65 1200 covers 10-65mm bar up to 1200mm long with a centre height range of 850mm to 1150mm.
Do you support and service them?
We build them ourselves in Pinetown, so parts and support come from the same workshop that makes the machine — and the design is maintenance free.
