Capabilities
Pitchline Engineering’s extensive manufacturing capabilities, outlined in the chart below, enable us to offer our customers a supplier that is both adaptable and highly specialized.
| Description | Machine Quantity | Max. Diameter (mm) | Max. Length (mm) | Information |
|---|---|---|---|---|
| TOPPER TNL 100 | 02 | 220 | 500 | – |
| TOPPER TNL 120 | 02 | 220 | 500 | – |
| TOPPER TNL 130 XL | 01 | 400 | 900 | – |
| VICTOR LATHES | 01 | 650 | 900 | – |
| PITCHLINE NL LATHES | 06 | 50 | 100 | – |
| PITCHLINE NL WITH MILLING | 02 | 50 | 100 | – |
| SUNEN HONING MACHINE | 01 | 12–60 | 250 | – |

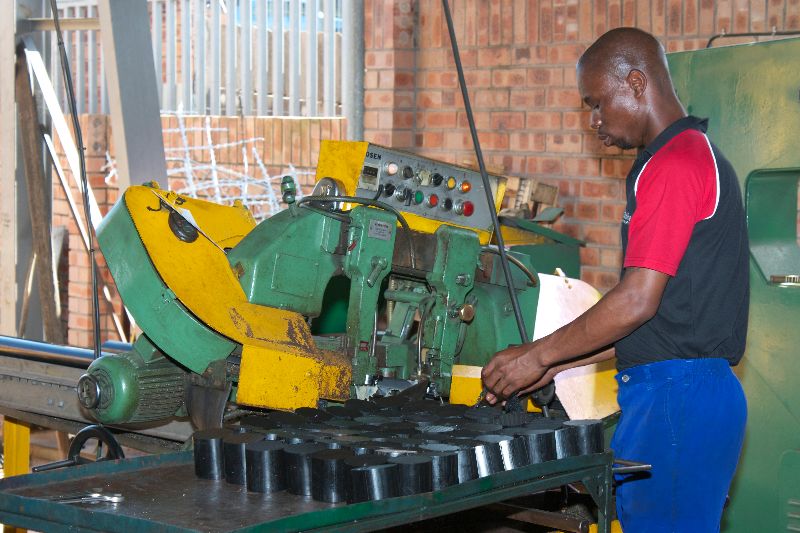

| SAWS | 02 | 250 | 6000 | – |
| PROTH SMALL SURFACE GRINDER | 01 | 400 x 350 | 700 | – |
| PROTH LARGE SURFACE GRINDER | 01 | 600 x 450 | 1000 | – |
| JAIHNIER CENTRELESS GRINDER | 01 | 08–80 | 160 | – |
| MANUAL MILL | 02 | 350 x 300 | 700 | – |
| MANUAL LATHE | 01 | 700 | 1400 | – |
| MANUAL LATHE | 01 | 400 | 1400 | – |
| SUPERTEC CYLINDRICAL GRINDER | 01 | 300 | 1000 | – |
| JONES AND SHIPMAN CYLINDRICAL GRINDER | 01 | 250 | 500 | – |
| GEAR HOBBING | 01 | 500 | – | – |

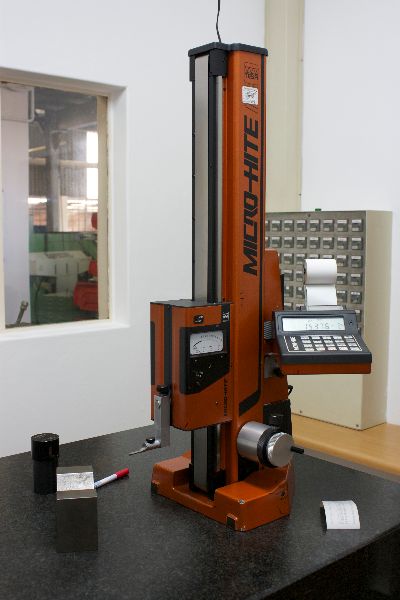

| TESA MICRO HEIGHT | 01 | – | 600 | 1 Micron Flatness / Accuracy |
| TOPPER MILL | 03 | X=750 Y=500 Z=500 | – | – |
| TONGTAI TNL MILL | 01 | X=1000 Y=550 Z=500 | – | – |
| 4TH AXIS MILL | 04 | 360 | 400 | – |
| RUBBER PRESSES | 02 | 450 x 180 HEIGHT | 450 | – |
| RUBBER PRESSES | 03 | 400 x 180 HEIGHT | 250 | – |
| RUBBER PRESSES | 03 | 250 x 100 HEIGHT | 250 | – |
| VIBROPOLISHING | 01 | 150 x 150 x 150 | – | – |
| SAND BLASTING | 01 | 600 x 600 x 300 | – | – |
| GEAR SHAPING | 01 | Internal 200 / External 300 | – | – |
| MIG WELDING | – | – | – | For Stainless & Mild Steel |
| TIG WELDING | – | – | – | For Mild Steel, Stainless Steel & Aluminium |
| NATURAL ANODISING | – | – | – | – |
| BROACH | – | 400 | – | – |
CNC Turning
- We have a line of 14 Lathes (including 2 Mill Turns)
- Our maximum diameter (Ø) of 310mm means that we can accommodate large and small work loads.
- With a maximum run length of up to 1m, assisting with our ability to do large, custom work at varying lengths.
- Our production line boasts 12 lathes that are equipped with automatic Barfeeders ensuring high speed production and accuracy throughout the process.
CNC Milling
Our machining capabilities include:
- 5 CNC milling machines
- Maximum workpiece size: 1000mm x 500mm x 400mm
- Optimized productivity: 3 machines are palletized for enhanced efficiency
- Advanced precision: 4 machines feature dedicated CNC rotary tables
Grinding Services
Surface Grinding
- 3 surface grinders (2 semi-automatic, 1 fully automatic)
- Maximum capacity: 1200mm x 600mm
Cylindrical Grinding
- 2 semi-automatic cylindrical grinders
- Maximum capacity: Ø 200mm x 300mm
Centreless Grinding
- 1 semi-automatic centreless grinder
- Capacity range: Ø 6mm to Ø 60mm, maximum length 200mm
Rubber Molding
Our facility is equipped with state-of-the-art machinery to ensure high-quality rubber molding and preparation processes. We utilize:
- 5 Vacuum Compression Molding Machines, designed for precision molding with reduced air entrapment, ensuring superior product quality.
- 4 Standard Compression Molding Machines, ideal for producing durable and high-strength rubber components.
- 3 Rubber Extruders, dedicated to the preparation of rubber materials, ensuring consistency and optimal performance in the molding process.
This advanced equipment allows us to meet a wide range of production needs while maintaining efficiency and quality control.
Gear Cutting Services
We offer precision gear cutting with advanced machinery to meet your specific requirements. Our capabilities include:

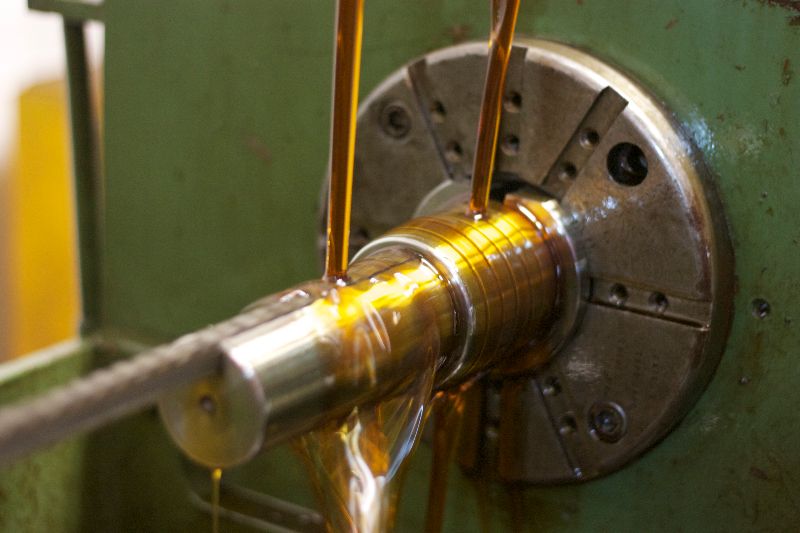

- Gear Hobbing: Equipped with 2 gear hobbing machines capable of cutting both spur and helical gears with high accuracy and efficiency.
- Gear Shaping: Utilizing 3 gear shaping machines designed specifically for producing high-quality spur gears.
To ensure the availability of the appropriate cutter for your project, please provide details regarding the required Module or Diametral Pitch (DP). Our team will be happy to assist you in selecting the best tooling for your needs.
Miscellaneous

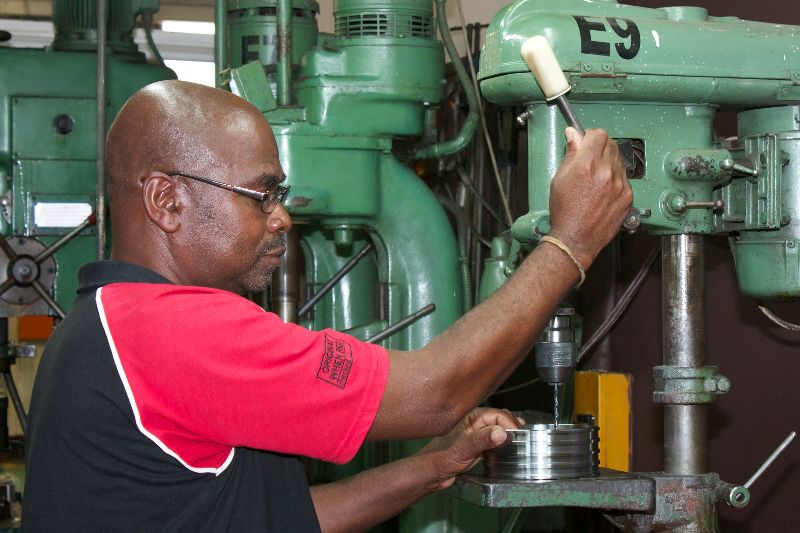

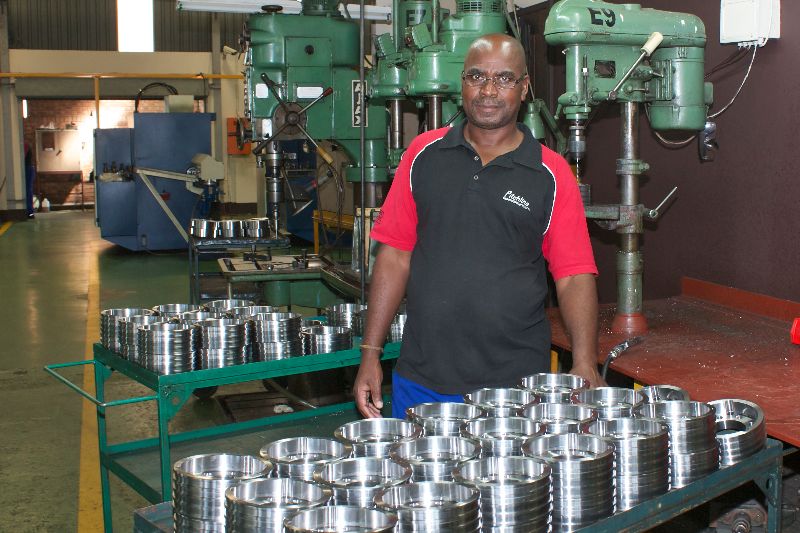

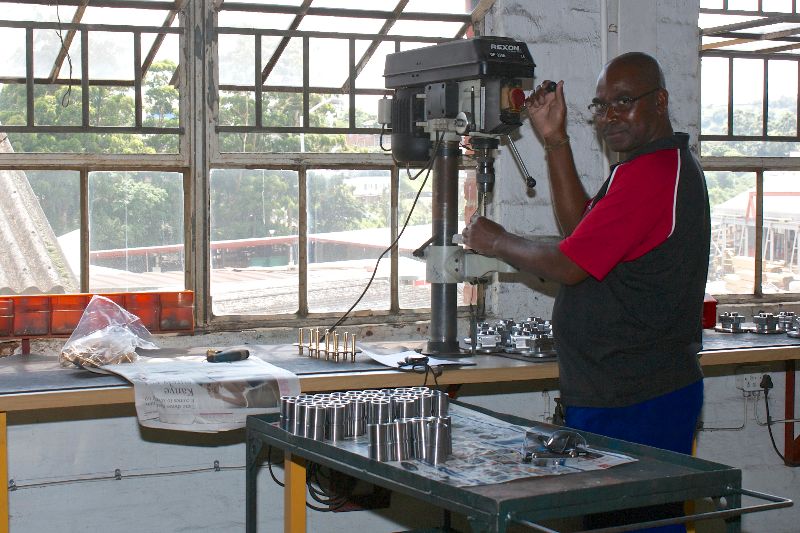

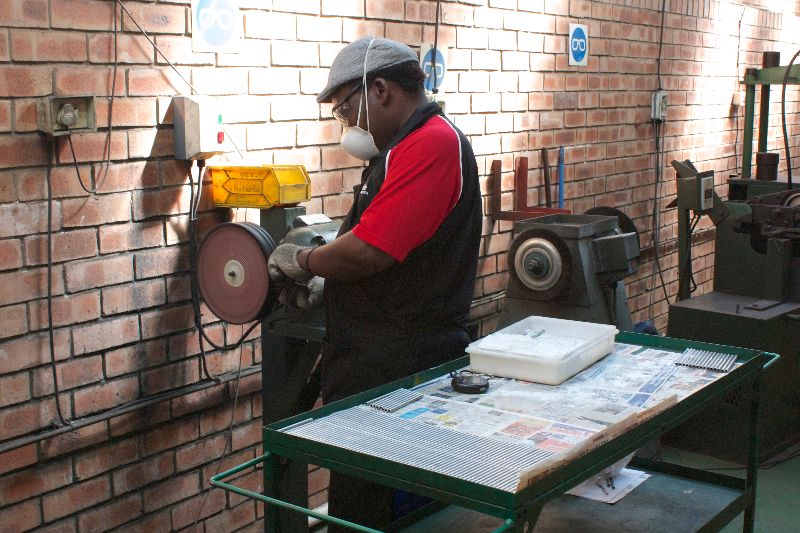

Pitchline is equipped with a diverse range of conventional workshop machinery, including drill presses, hydraulic presses, manual lathes, saws, vibro polishers, and broaching machines, among others. These tools allow us to handle a variety of machining tasks efficiently. However, for specialized processes that require advanced expertise or unique capabilities, we partner with a network of carefully selected and trusted suppliers. This approach enables us to provide our customers with fully integrated and comprehensive machining solutions, ensuring high-quality results that meet their specific requirements.
